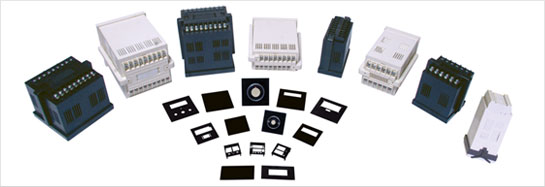

This is most elegant series of DIN standard instrument cases of Electrocom family.This series covers almost all standard sizes with different depths. In this series all models comprises of below items.

Download
48x48pcb12way(ventura)
48x48pcb16way(ventura)
48x96 Assembly(ventura)

Download Front Plates Details:

48X48 Front Plates

48X96 Front Plates

72X72 Front Plates
Page 1 | Page 2 | Page 3

96X96 Front Plates
Page 1 | Page 2 | Page 3 | Page 4 | Page 5



Box : Complete ventilated plastic molded housing for better heat decapitatiions.

Front plate : Many combinations of front pLates are readily available with Cutouts and holes.



Back plate : Back plates are facilitated with long terminal pins (L-PINs) which directly get soldered to component PCB, so that one can obtain efficient wireless instruments and saves lot of time in assemblies.

Clamps : Rigid clamps are provided to mount instruments in control panels.

Colours:White and Black

Many more accessories are available In these series are dummy terminals, angles and service plates (transformer plates). Some of applications for thesehousings are Temperature Controllers, Timers, Counters, Digital Panel Meters. RPM Meters and many other kinds of micro controlled instruments.

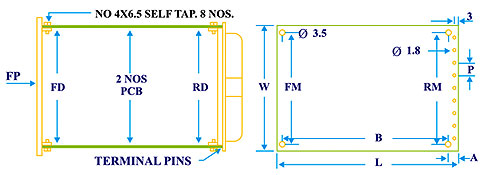

FD :

Front Distance

RD :

Rear Distance

FM :

Front Mounting

RM :

Rear Mounting

W :

Width

I :

Length

P :

Pitch

A :

First Reference

B :

Second Reference

FP :

Front Plate

MXT :

Maximum Terminals



SIZE

FD RD FM RM W L A B FP P

MXT

96X96X110

79 75 74 78 84 109 6 100 91.5 SQ 8.5 18

96X96X85

79 75 74 78 84 83.5 6 74 91.5 SQ 8.5 18

96X96X65

79 75 74 78 84 64 6 55 91.5 SQ 8.5 18

48X96X110

32 32 78 78 84.5 109 6 100 44X91.5 8.5 16

48X96X65

32 32 78 78 84.5 64 6 55 44X91.5 9.5 16

72X72X110

55.5 54.5 54 54 62.5 101 5.5 92.5 68 SQ 9.5 12

72X72X110

55.5 54.5 54 54 62.5 101 5.5 92.5 68 SQ 9.5 16

72X72X65

55.5 54.5 54 54 62.5 64 5.5 55 68 SQ 9.5 12

72X72X65

55.5 54.5 54 54 62.5 64 5.5 55 68 SQ 9.5 16
